Pipeline Plug

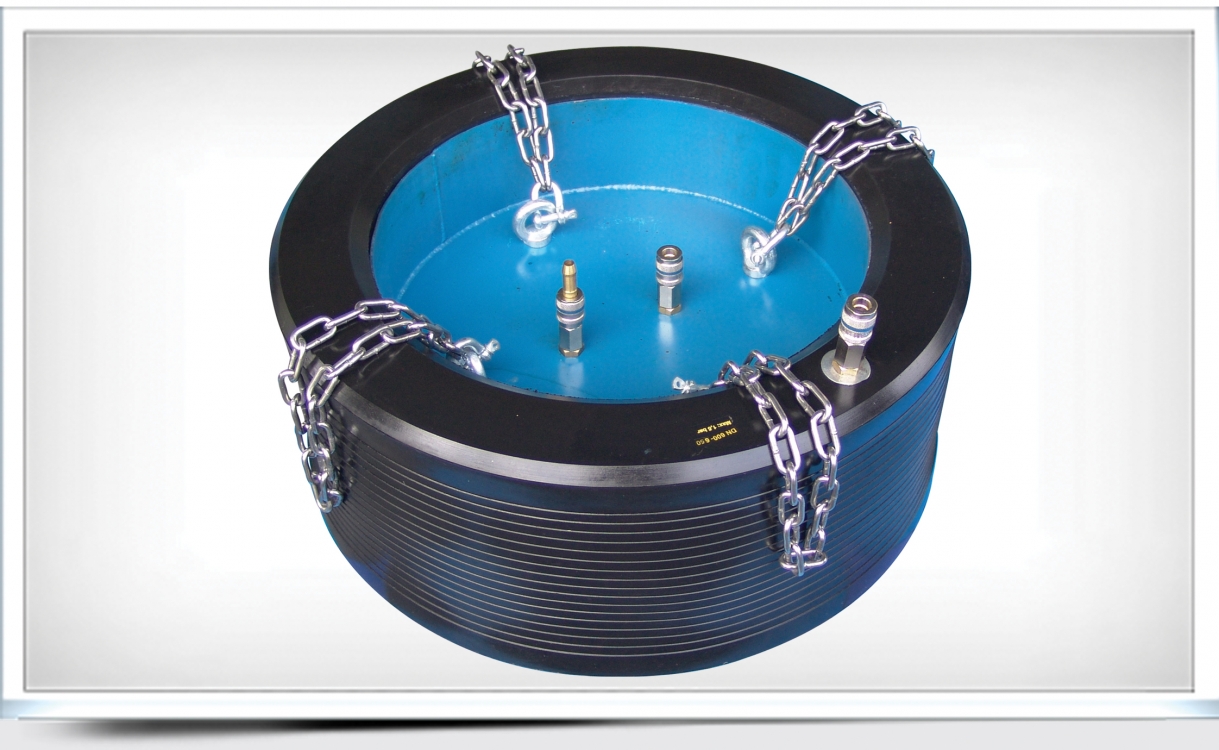

Manhole Test Plugs

Manhole test plugs are short test plugs used for testing manholes.They are made from SBR+NR mixed rubber and strong fabrics. Manhole test plugs are able to run between -30°C and + 70°C. They are tested at the 1, 3 times higher than their working pressure and they have ultrahigh bursting pressure.







Part Number    Min.Pipe Diameter
 (mm)
Mak.Pipe Diameter
(mm)
Mak. Working Pressure
 (bar)
Product Diameter
(mm)
Product Total Length
(mm)
Bypass Diameter
(─▒nch)
Product Weigth
(kg)
RTB6006501 600 650 1,5 582 250 2x1/4” 5,2
RTB6006502 600 650 1,5 582 250 1” 6
RTB6006503 600 650 1,5 582 250 2” 6,5
RTB8008501 800 850 1,5 782 250 2x1/4” 7,5
RTB8008502 800 850 1,5 782 250 1” 8,5
RTB8008503 800 850 1,5 782 250 2” 9,5
